Vehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMS

ADAS maximum detection distance : ≥150m

Place of Origin : Guangdong,China

Packaging Details : Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .

Product Features : Timely intervention in imminent traffic accidents

Braking safety distance : 3m~50m

Delivery Time : 2-3 days for samples,15-30 days for large orders

Millimeter wave radar detection range : ≥200m

Mistriggering rate : 1/100000km

MOQ : 5pcs

Payment Terms : T/T or western Union or Paypal

Brand Name : Vanwin Tracking

Model Number : VW-AEBS-A4

Product performance : Intelligent collision prevention active braking

Supply Ability : 5,0000 pcs per month

Maximum deceleration : 10km/h (adjustable)

Type : Vehicle Automatic Emergency Braking System

Price : negotiated

Certification : CE/FCC/RoHS

Contact Now

Vehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMS | Retrofit Fleet Safety Solution

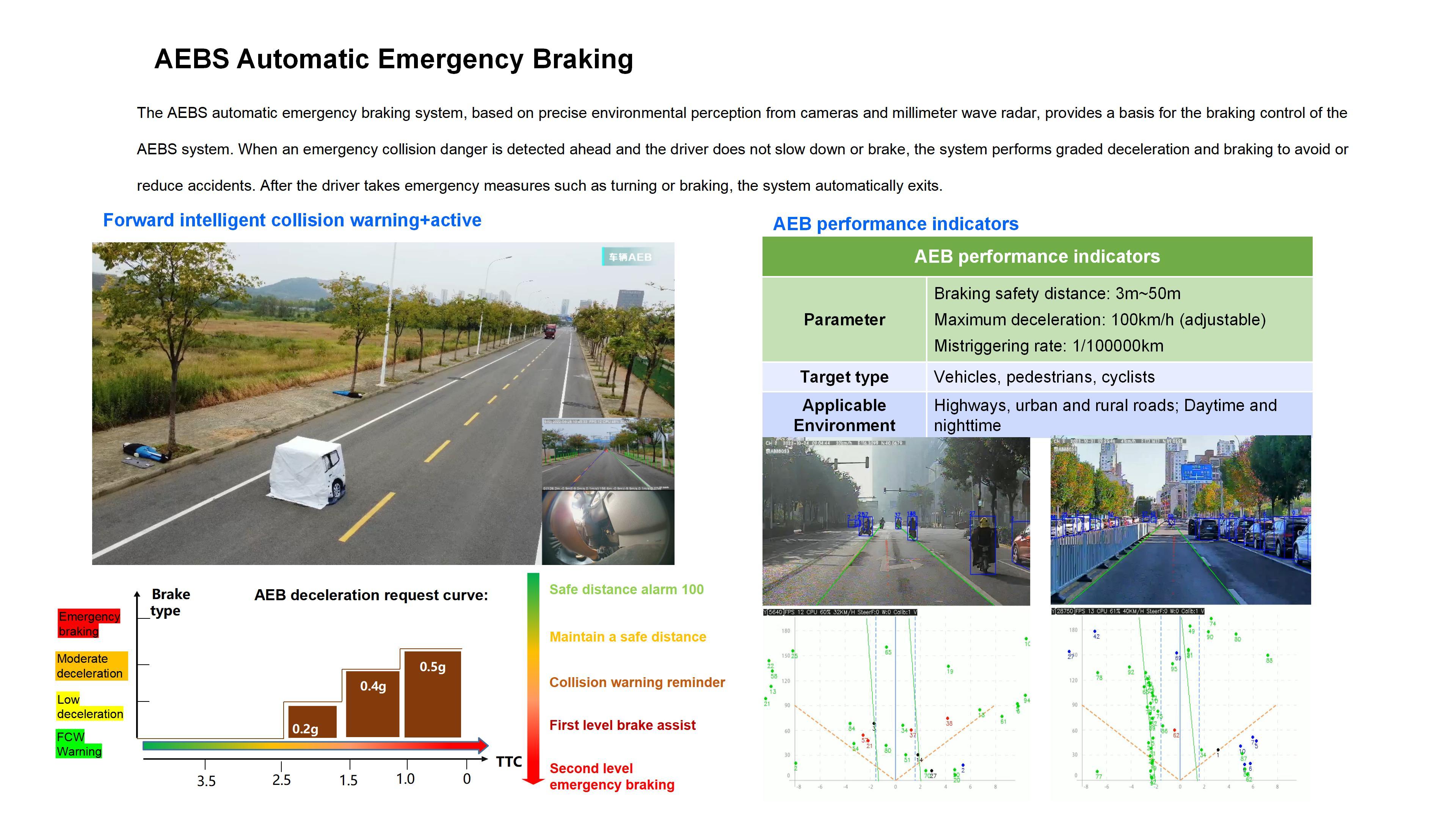

AEBS Automatic Emergency Braking: Based on camera and 77GHz millimeter wave radar fusion perception, the system automatically applies staged braking when a forward collision risk is detected and the driver fails to respond, effectively avoiding or mitigating impacts.
Forward Collision Warning +Active Braking: Supports multi target recognition for vehicles, pedestrians, and cyclists. The braking safety distance ranges from 3 m to 50 m, with a maximum deceleration of 100 km/h (adjustable).
DMS Driver Status Monitoring: Powered by deep learning algorithms, it monitors dangerous behaviors in real time, including fatigue, distraction, phone use, and smoking, with an alarm accuracy rate exceeding 95%.
Blind Spot Braking Technology:The first in China to develop blind spot braking technology, assisted by reversing radar, effectively preventing accidents caused by blind spots.
End Cloud Integrated Platform: Combines smart terminals, a cloud platform, and 24/7 risk control operations, enabling real time monitoring, trajectory tracking, and graded risk handling.
Retrofit Without Altering Original Vehicle Structure: Specifically designed for existing commercial vehicles installation does not change the original brake master cylinder, clutch, or other critical components, ensuring safety and reliability.
Significant Accident Rate Reduction: Actual operational data shows that after AEBS installation, the overall accident rate drops by 55% year on year, and casualty accidents are reduced by 85%.

Complies with Multiple National Standards: Rigorously tested and certified according to JT/T 1242 /2019 Performance Requirements and Test Procedures for Automatic Emergency Braking Systems of Commercial Vehicles.

Key attributes

Type
Vehicle Automatic Emergency Braking System
Car Fitment
Universal
Connection
One on one installation guidance
Compatible Devices
Supports 808 protocol and can be linked to MDVR
Warranty
1 Year
Design Style
Vehicle safety and driving protection.
Place of Origin
Guangdong, China
Model Number
VW-AEBS-A4
Brand Name
VANWIN
Product performance
Intelligent collision prevention active braking
Product Features
Timely intervention in imminent traffic accidents
Braking safety distance
3m~50m
Maximum deceleration
10km/h (adjustable)
Mistriggering rate
1/100000km
ADAS maximum detection distance
≥150m
Millimeter wave radar detection range
≥200m
DMS driver monitoring and warning
Falling asleep, making phone calls, smoking, etc
Monitoring type
Vehicles, pedestrians, cyclists, obstacles, etc

Vehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMSVehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMSVehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMS

With over 15 years of deep expertise in the automotive electronics industry, Shenzhen Vanwin Tracking Co Ltd specializes in AI-powered vehicle active safety and monitoring solutions, including AEBS (Advanced Emergency Braking System), high-precision passenger counting and ADAS & DMS intelligent warning systems. Our product portfolio includes AI intelligent monitoring systems, mobile DVRs, dash cameras, in-vehicle cameras, passenger counting devices with an accuracy rate of 98% to 99% , significantly above the industry average. We also provide complete AEBS forward collision avoidance systems, alongside a full range of accessories including display monitors, fuel & temperature sensors, tyre pressure sensors, fire-proof enclosures, alarm devices and more. We provide customized solutions and value-added services to clients worldwide. Led by our R&D Director with over 20 years of industry experience, our team is capable of delivering on-site installation and technical support overseas for customized projects and bulk orders. We are more than just a supplier, we are a trusted partner. We warmly welcome global distributors, system integrators and fleet operators to join us for mutual success.

Vehicle Automatic Emergency Braking System Truck Collision Avoidance AEBS with ADAS+DMS

FAQs
Which car models are applicable?
Tractors, container trucks, commercial concrete trucks, dump trucks, mining trucks, buses and other commercial vehicles can all be installed.
Will installation change the original brake structure of the car?
No. Using a cable motor to assist braking, without changing the master cylinder, oil/air circuit, and without affecting the original factory warranty.
Will AEBS brake incorrectly?
The false triggering rate is only 1/100000 kilometers. When the driver steps on the brake or turns in the direction, the system immediately exits and manual priority is given.
Will the driver feel abrupt when the system intervenes in braking?
No. Adopting graded braking, warning first, then light braking, and then heavy braking, smoothly intervening without sudden locking.
Are devices afraid of bumps and high temperatures?
Working temperature -40 ℃~85 ℃, protection level IP 6k9k, able to withstand harsh road conditions such as mines and construction sites.
Will cloud platform monitoring frequently disturb drivers?
No. Only manually intervene in high-risk events, provide daily voice reminders, and do not excessively disturb.
